Vacuum Excavation
To complement our utility mapping solutions, at Technics we also offer a vacuum excavation service. This technology provides a low impact, non-destructive solution for visual inspection of the exact positions of buried services.
How does vacuum excavation work?
Vacuum excavation is a safe technique used to expose the position of underground services with either jet air or water to loosen the soil. After the soil and any other materials are loosened, they are extracted through a high-power suction hose into the spoil/debris tank, which is later used for backfilling or disposal.
In line with the PAS 128 specification QL-A (quality level), vacuum excavation provides the ultimate verification process for exposing utilities to determine their type, depth, size and position. We can also accurately survey the utilities at the time of excavation to update the survey or record drawings.
Vacuum excavators are used in various projects, including infrastructure, aviation, sewage treatment plants, highways and housing developments. Tier-one contractors, retailers, and housebuilders acknowledge the safety benefits they provide compared to traditional excavation methods.
What are the benefits of Vacuum Excavation?
Using both EML (electromagnetic locators) and GPR (ground-penetrating radar) equipment along with vacuum excavation technology significantly reduces the need for manual handling and hand digging. Technics’ solution is, therefore, far more efficient, delivering results quickly while significantly reducing risks to site personnel.
- Technics’ vacuum excavator service significantly reduces potential issues at the design stage for construction projects
- This non-mechanical excavation solution can also be employed in areas inaccessible to traditional machinery.
- Test holes can be as small as 20cm ², minimising the risk of excavation collapse
- Backfilling the existing spoil from the Vacuum excavator tank is cost-effective and beneficial to the environment.
- Vacuum excavation is a method that produces significantly less dust compared to other excavation techniques. This is because the vacuum excavator directly sucks in all the spoil and dust from the excavation site, making it a safer and cleaner option for both site workers and members of the public. This process is also beneficial for the environment.
Why choose Technics?
At Technics we offer an extensive vacuum excavation service, which is what allows us to stand out from other providers in the industry.

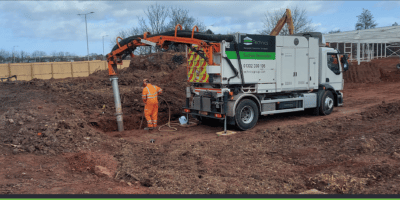

We are one of three UK vacuum excavation contractors to have a smaller City Dino suction unit. Not only does a small unit have environmental benefits, but it also allows us to work better in confined and congested environments, including tight, narrow streets, housing developments and paved areas. The rear tipping facility on our smaller vacuum excavation unit also provides greater manoeuvrability on site, easily allowing us to tip materials into 2 x 1-tonne bags or a skip.
With over a decade of excavation expertise carrying out projects – for companies such as Wood plc, BAM Nuttall, Vital Energi Utilities, TRL, Curtins and Lidl – our service also includes the following options as standard:
- Handle the procurement of utility asset records required before any excavation (or we can carry out a utility mapping survey before excavations).
- Manage the permit to dig process
- Accurate surveying of exposed utilities following vacuum excavation.
- Traffic management requirements
- Accurately survey the exposed utilities
- Reinstating materials (subject to approval) or managing the removal of the materials if required
- Provide provision for detailed drawings of all detected and exposed utilities using multiple technologies
